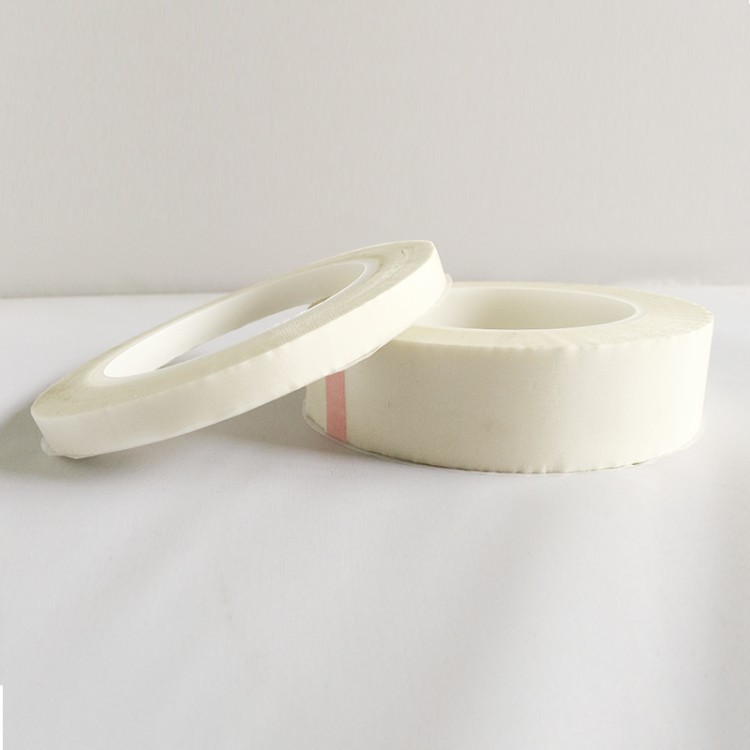

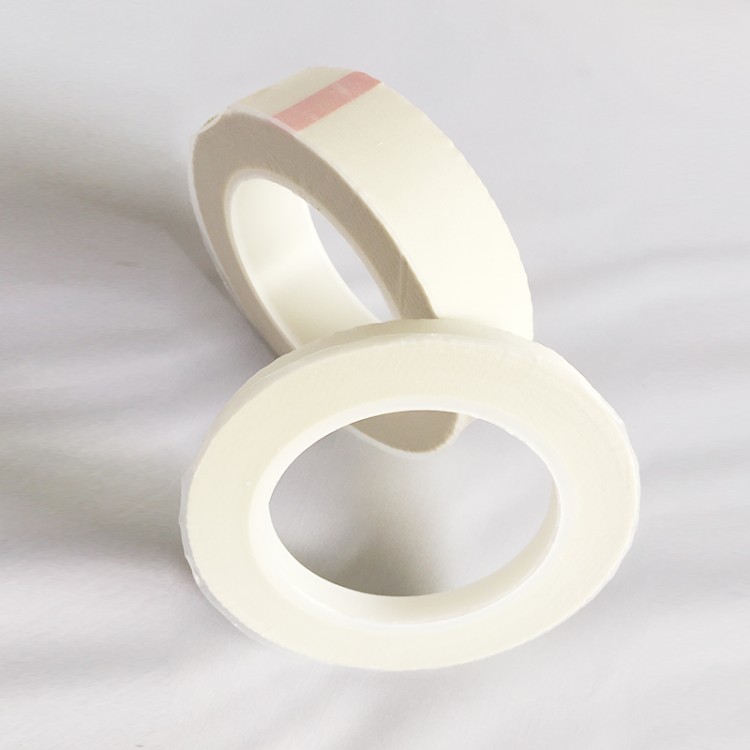

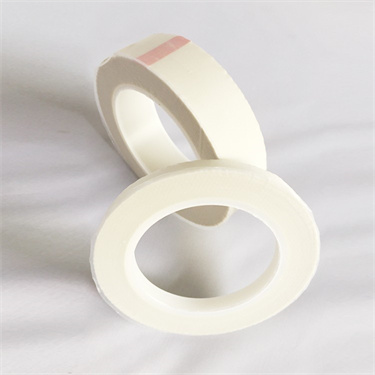

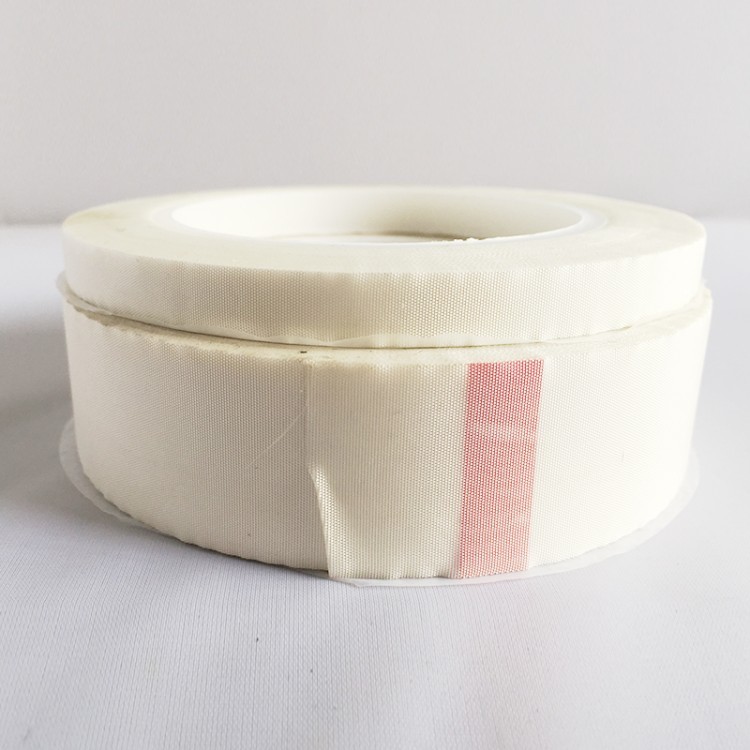

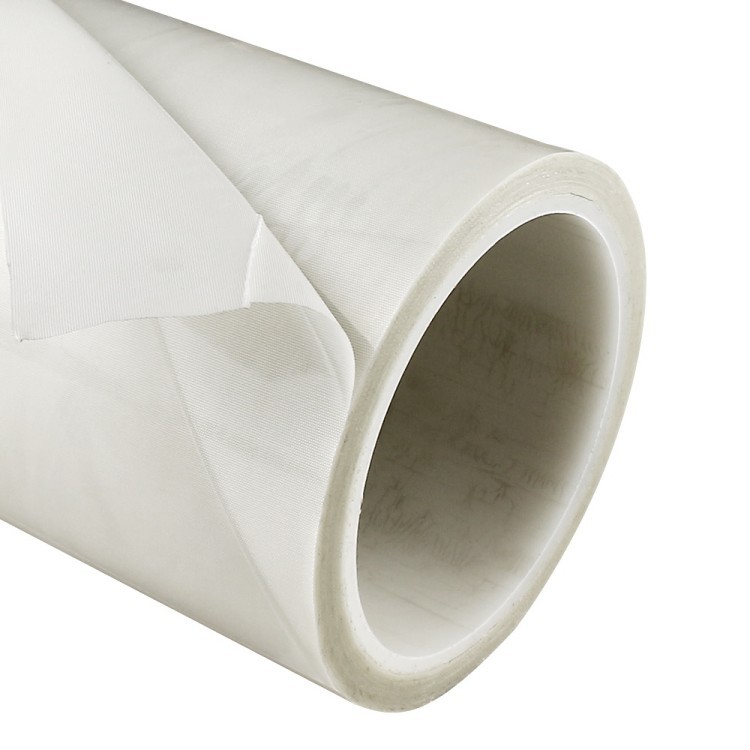

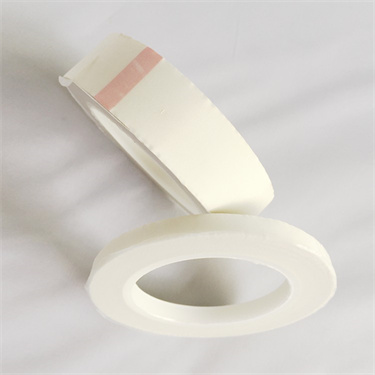

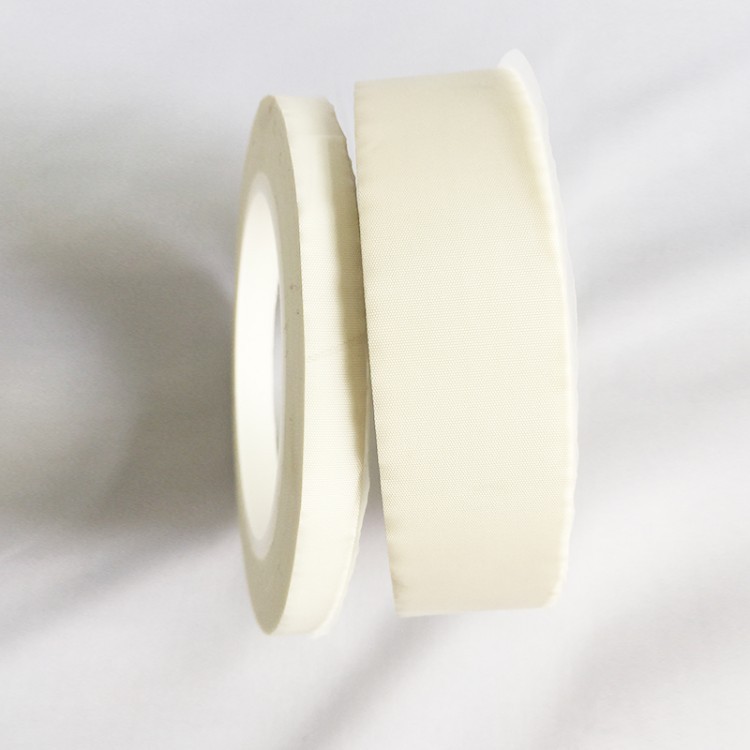

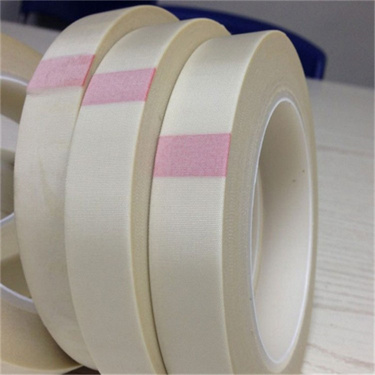

fireproof glass cloth electrical tape


Fireproof glass cloth electrical tape is silicone adhesive high temp fiberglass tape.


Features: Wire shielding/ Electric/ Electric appliance shielding, it’s with super flexibility,

Stand up 200degrees high temperature.



Usage: Power supply’s high power transistor/cooling fin/integrated circuit chip/LCD TV/

plasma display panel TV and mobile computer, etc.


Item Name
Fireproof Glass Cloth Electrical Tape
Color
White
Brand
XHTTAPE
Type
Single  Sided Tape
Backing
Fiberglass Cloth
Adhesive
Silicone
Liner
PET/PVC
Thickness
0.18mm
Adhesion to Steel(N/25MM)
5.5 to 7.0
Tensile Strength (N/25mm)
240 to 400
Width
500 mm  Other Size can be custom
Length
30m  Custom can be available
Application temperature
-50℃~200℃
Main Features
1) High heat shielding below 200°C/392°F
2) No glue residue, in a long time after the high temperature curing adhesive tape.
3)High mechanical strength, suitable for tightly wrapped coil firmly.
4) Thermal stability, and long-term work at 200℃, a short time
can withstand 260 ℃ high temperature.
5) Soft tear-resistant, strong bond, not easy to deformation, suitable for a variety of profile paste surface protection.
Application Scenarios
• Insulating electric and induction-type furnace power supply leads
• Securing systems requiring high mechanical strength and resistance to high temperatures
 • Splicing wire SF and SFF rated 302° F (150° C), 356° F (180° C)
• Insulating motor lead connectors, switchers and controls for furnaces and ovens
 • Insulation in coil wrapping outerwrap
 • Provides heat stable insulation for hot spot applications
• High temperature protection
♦Insulation / Lithium battery extremely car fixed / Transform coil wrapping and fixed / Chip insetting.
