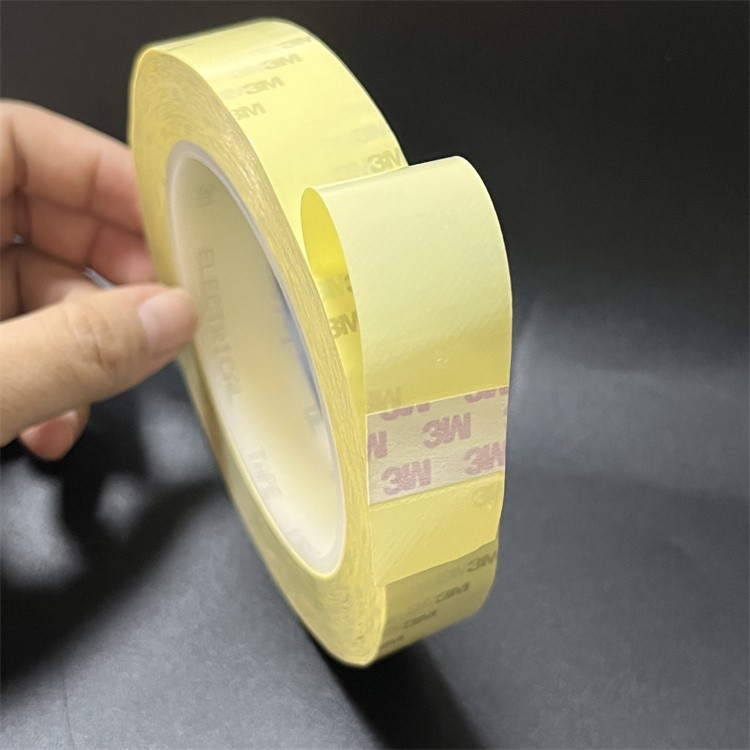

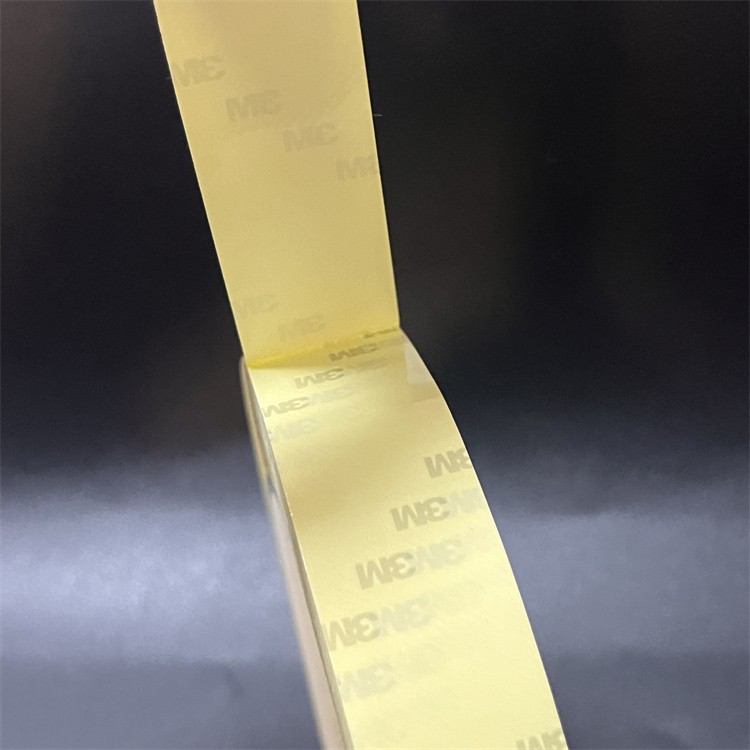

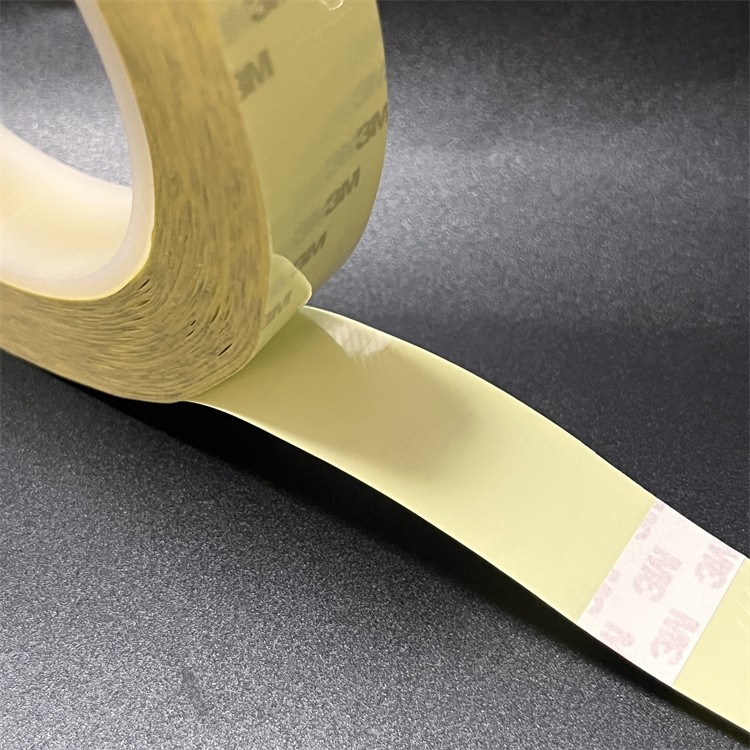

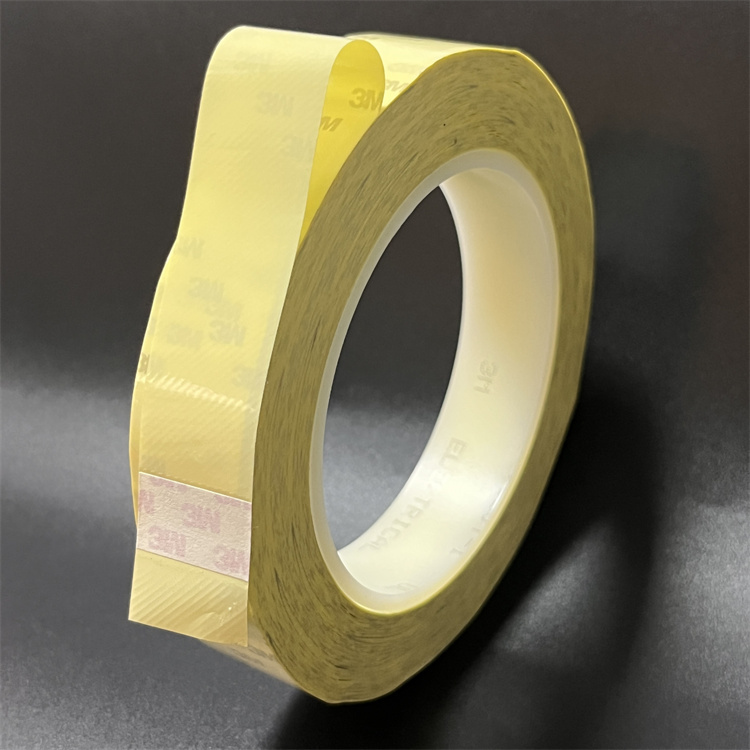

3M 1350T-1 electronic tape

3M 1350T-1 electronic tape

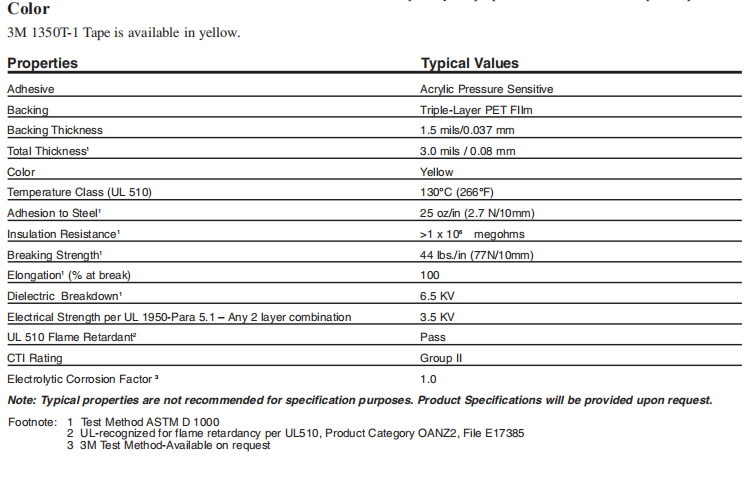

3M™ 1350T-1 Tape is a flame-retardant, triple-layer polyester film tape which has UL component Recognition for temperatures not exceeding 130˚C. It is designed for use as
REINFORCED INSULATION as specified in UL 1950/IEC 60950 clause 2.9.4.2 and offers excellent solvent resistance,good quick stick, even unwind, and is suitable for use on
automatic taping equipment.
down load to pdf

Product Details

Product Tags

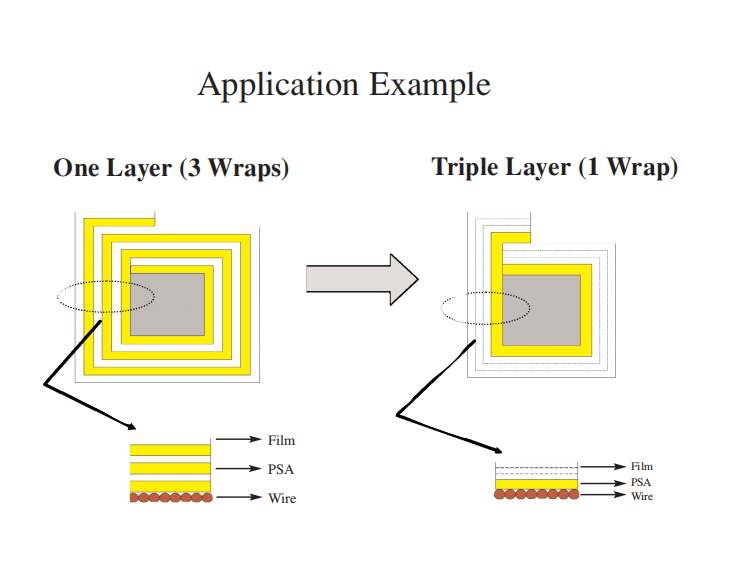

3M 1350T-1 Flame-Retardant, Triple-layer Polyester Film Tape with Acrylic Pressure-Sensitive Adhesive is designed for use as inner-layer insulation on transformer magnet wire windings where REINFORCED INSULATION as specified.




• UL tested for UL 1950 Reinforced Insulation Requirements

• Tested and complies with IEC 60950/EN 60950 according to TÜV and Nemko

• UL Recognized Flame Retardant  • UL Recognized Class 130°C

• UL Recognized CTI Group II

• CSA component recognized

• Decabromo Diphenyl Oxide (DBDPO) Free

• Solvent resistant without thermosetting

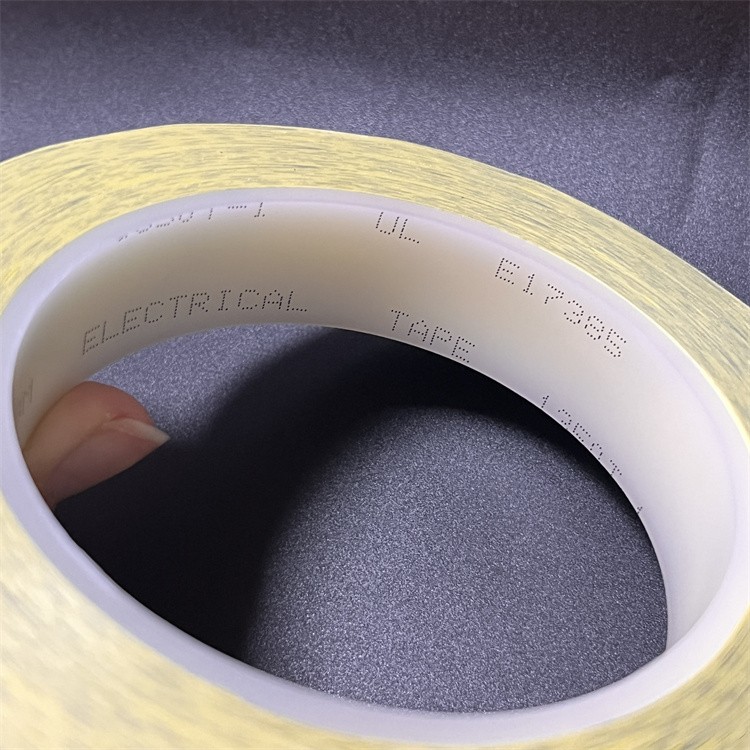

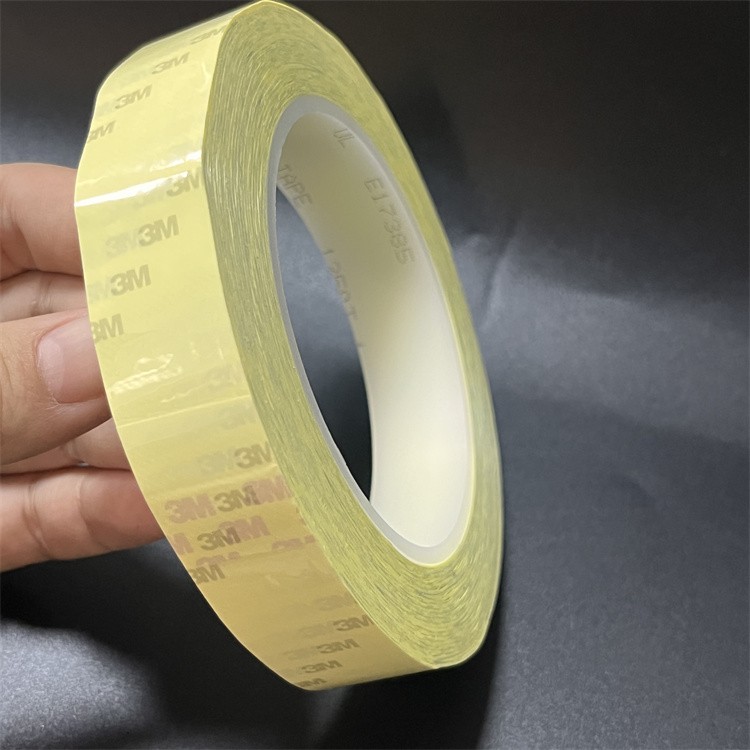

• 3M Logo Imprinted for Identification
